101629 Lipo 3.7v 5v 500mah Battery Rechargeable Battery

Model:

Product Details

Customized 3.7v Lipo Battery 602525 602535 602540 602560 1.85wh 1000mah Li-polymer Battery

Customized 3.7v Lipo Battery 602525 602535 602540 602560 1.85wh 1000mah Li-polymer Battery

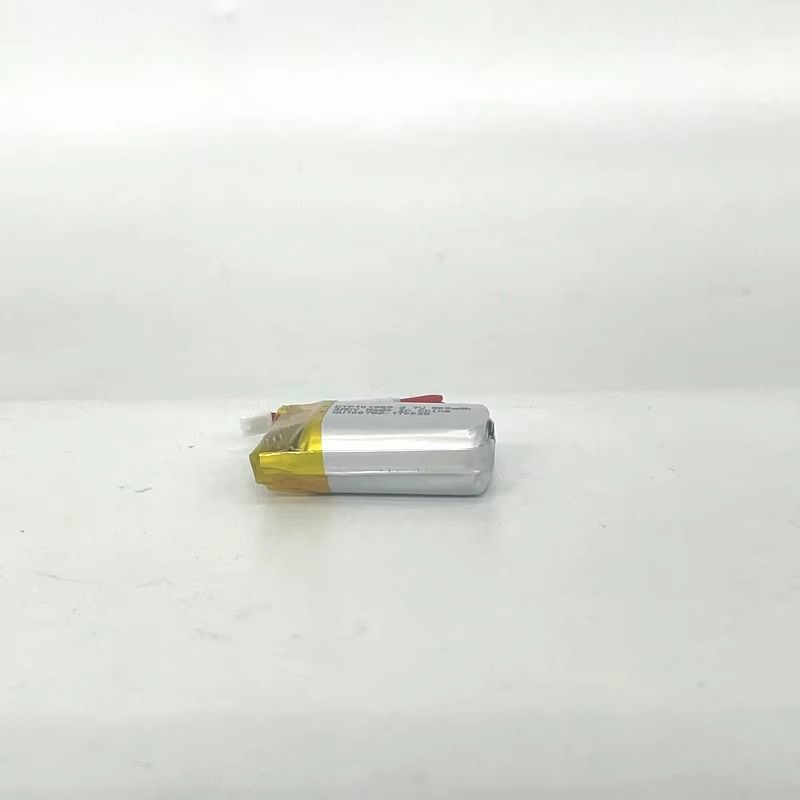

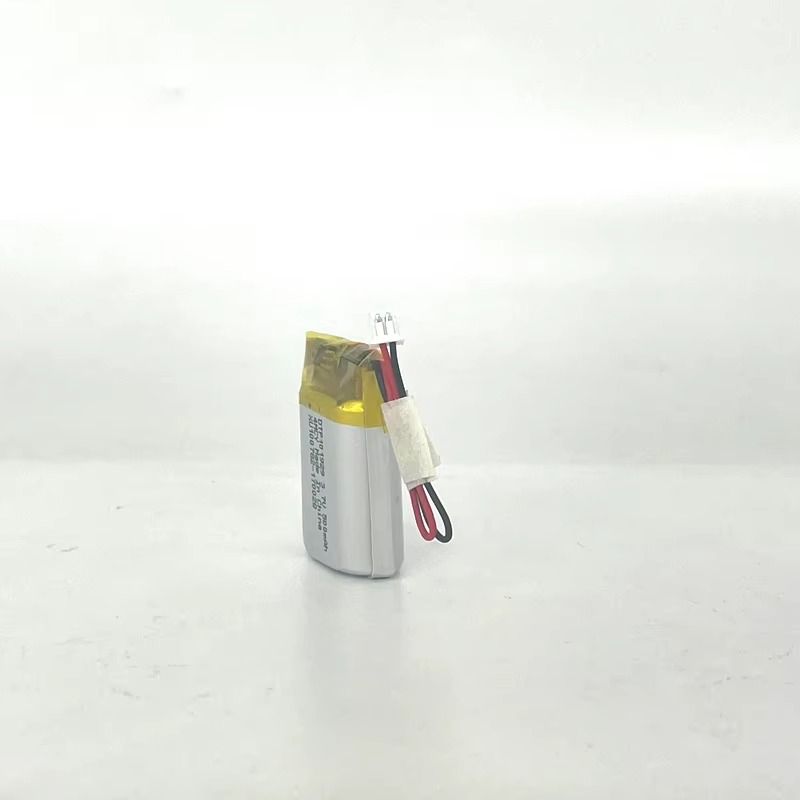

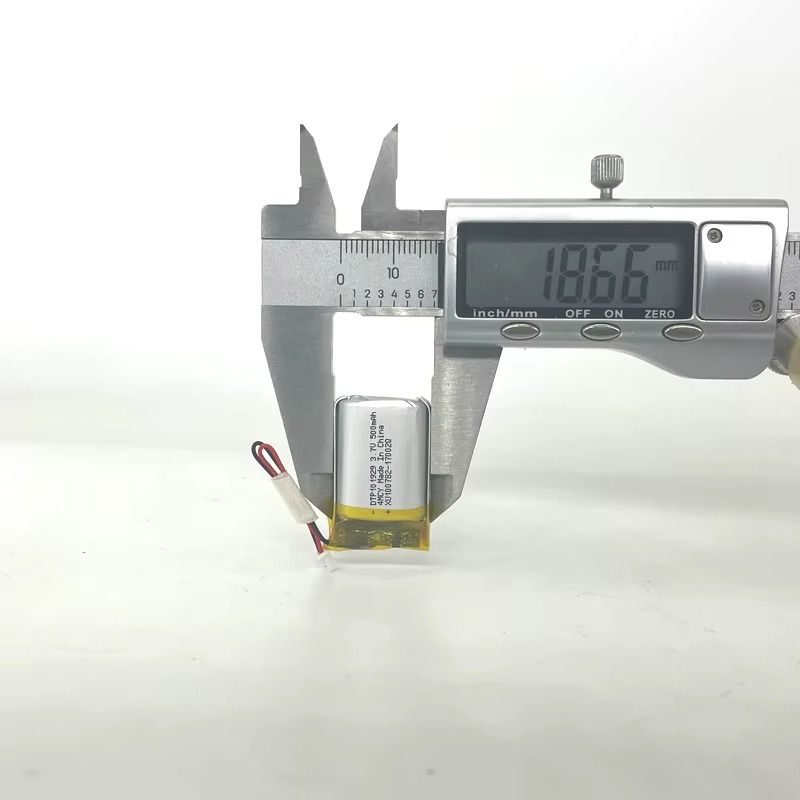

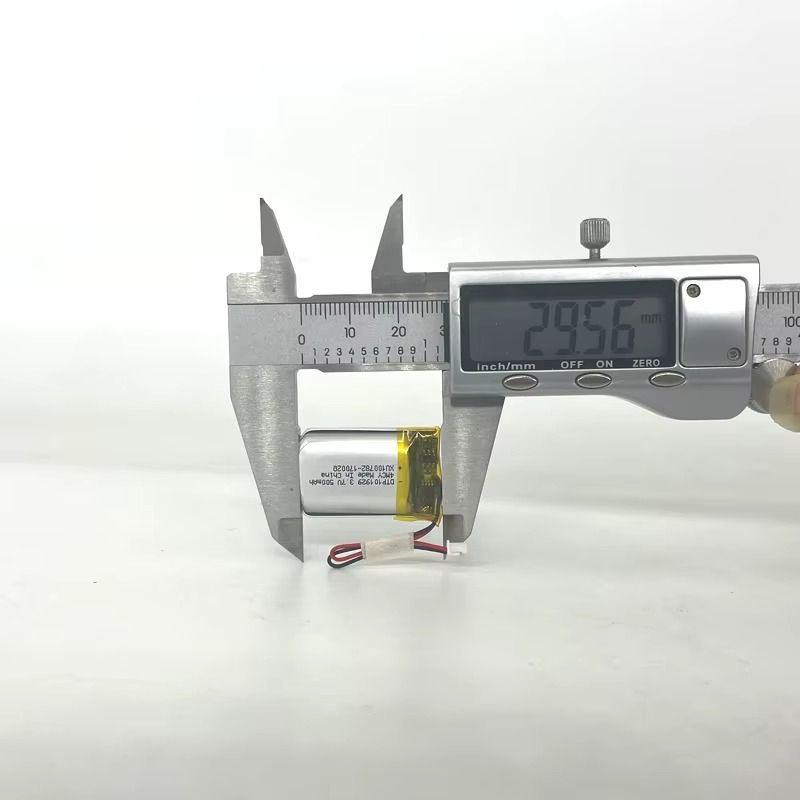

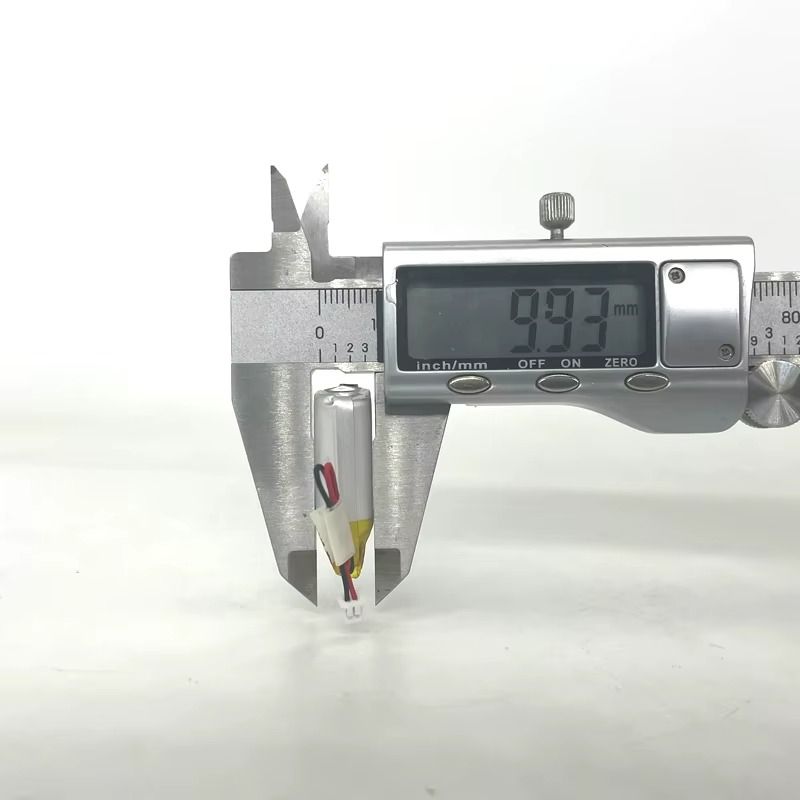

DTP101929 3.7V 500MAH LIPO BATTERY

Factory Capabilities: We offer 2000+ LiPo battery models (0.7 mm- 13 mm thickness, 80mAh-10000mAh capacity), including high-rate, ultra-thin, and special shapes (round/cylindrical). Custom 3.7V LiPo batteries available.

Product Parameters

Battery Model:DTP101929
Nominal Voltage:3.7V
Minimum Capacity:500mAh (0.2C discharge)
Charging Voltage:4.2V
Discharging Cut-off:3.0V

Charge & Discharge

Standard Charging:0.2C /4.2V
Max Charging:1.0C /4.2V
Standard Discharging:0.2C/3.0V
Max Discharging:Continuous: 1.0C/3.0V
                       Non-continuous: 2.0C/3.0V

Technical Specifications

Shipment Voltage:≤3.85V
Pack Impedance:≤80mΩ
Operating Temp (Charge):0°C to 45°C
Operating Temp (Discharge):-20°C to 60°C
Storage (50% SOC):-10°C~25°C (12mo≥85%)
                       -10°C~45°C (6mo≥85%)
                       -10°C~55°C (1mo≥90%)
                       Recommended: 20±5°C

Quality & Customization

Visual Inspection:No scratches, cracks, deformations, swelling, or leakage
Certifications:GB/T18287-2013, KC, CE, ROHS, IEC/EN61960, UL1642
Custom Options:Thickness: 0.7-13mm | Capacity: 80-10000mAh
                       Special shapes (round/cylindrical) are available
